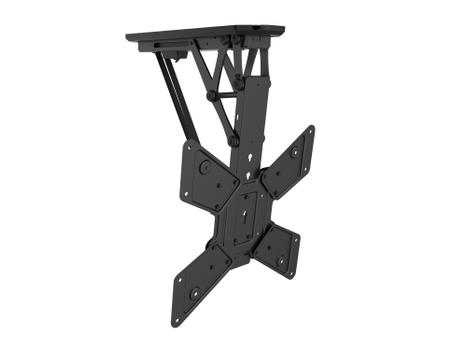

MULTIBRACKETS M Motorized Ceiling Mount 32"-55"
|
MULTIBRACKETS M Motorized Ceiling Mount 32"-55"
3 280,-
2 624,- ekskl. mva
Vårt lager på Kalbakken (PUP)
Ikke på lager
Leverandørlager (1-3 arbeidsdager)
Forventet på lager
02.04.2024
|
Beskrivelse
Spesifikasjoner
M Motorized Ceiling Mount 32"-55"
Are you in the need of a Motorized Flip Down from the Ceiling or under a Counter?
The M Motorized Ceiling mount 32"-55" is the ideal mount for your TV installation when in need of the. Often placed in bedrooms, kitchens, offices, schools or stores it can fold your screen down or up -75° - 0°. This under the cabinet/ ceiling mount includes a locking system to keep the screen in position and is a very practical solution supporting screens both smaller and larger, 32" to 55".
The M Motorized Ceiling mount 32"-55" is the ideal choice when you want a TV in a location where space is needed or a TV function is needed only from time to time, or for pure aesthetic reasons, creating a definite waow factor. The mounts arm length is easily adjusted to the size of your TV and will hold your flat panel safely in place and quickly fold down in position. The mount also includes a locking mechanism to safely lock your flat screen in place when flipped down, thus minimizing fatigue and vibration.
The M Motorized Ceilingmount 32"-55" uses a rapid motorized flip down transition technique with little noise. Use the included remote control to fold down or flip up the TV. Multiple ceilingmounts can be controlled with one remote control, if the sensors of the ceilingmounts are close.
Maximum height of screen is 393mm, measured from the upper VESA hole to ceiling,
Highlights
- The ideal solution for a ceiling or under a cabinet motorized flip down of your TV
- Supporting 32" up to 55" flat panel displays
- Rapid motorized transition -75° - +0° up and down folded position
- Lightweight construction that is easy to mount
- Max screen weight capacity: 30 kg
- Remote control included
- Instructions and mounting hardware included
Specification |
M Motorized Ceiling mount 32"-55" |
For screen size: | 32-55" |
VESA standard: | 100x100, 200x100, 200x200, 400x200, 300x300, 400x400 mm |
Article No: | 7 350 022 731028 |
Colour: | Black |
Max load: | 30 kg |
Tilt angle: | 0-75° |
Certification: | CE |
Power: | DC24V, 0,5A |
Remote control: | RF remote control included (old model IR remote control - art: 7350073734290) |
Weight: | 7.94 kg |
Size in mm: | 557x435x108 mm |
Warranty: | 1 year |
Mounting |
---|
Maksimalvekt (kapasitet) | 30 kg |
Minimum skjermstørrelse | 81,3 cm (32") |
Maksimal skjermstørrelse | 139,7 cm (55") |
Montasjetype | Tak |
Monteringsgrensesnitt, kompatibilitet (min) | 100 x 100 mm |
Monteringsgrensesnitt, kompatibilitet (maks) | 400 x 400 mm |
Panelmonterbart grensesnitt | 100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400 |
Antall skjermer som støttes | 1 |
Ergonomi |
---|
Vippjustering | Ja |
Vippevinkelområde | 0 - 75° |
Design |
---|
Produktfarge | Sort |
Kroppsmateriale | Composite |
Sertifisering | CE |
Energihåndtering |
---|
Fjerndrevet | Ja |
Tekniske detaljer |
---|
Antall per pakke | 1 stykker |
Emballasjeinnhold |
---|
Fjernkontroll medfølger | Ja |
Vekt og dimensjoner |
---|
Bredde | 557 mm |
Dybde | 108 mm |
Høyde | 435 mm |
Vekt | 7,94 kg |
Datainnpakking |
---|
Pakkebredde | 333 mm |
Pakkedybde | 635 mm |
Pakkehøyde | 145 mm |
Pakkevekt | 9 kg |
Logistikk data |
---|
Produkter per pall (EU) | 20 stykker |
(Indre) fraktkasse, bredde | 35,3 cm |
(Indre) fraktkasse, lengde | 65,5 cm |
(Indre) fraktkasse, høyde | 31 cm |
(Indre) fraktkasse, bruttovekt | 18,7 kg |
Produkter per (indre) fraktkasse | 2 stykker |
