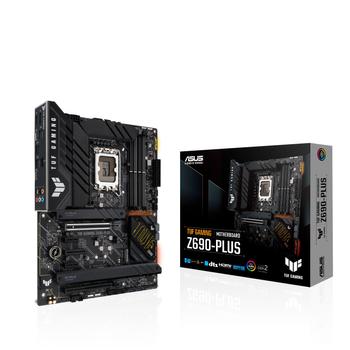

ASUS TUF GAMING Z690-PLUS WIFI LGA1700 Z690 USB3.2 GEN 2X CPNT

TUF GAMING Z690-PLUS WIFI

• Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™ processors
• Enhanced power solution: 14+1 DrMOS rated for 80 amps, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
• Next-gen connectivity: PCIe® 5.0, USB 3.2 Gen2x2 Type-C®, front USB 3.2 Gen 2 Type-C, Thunderbolt™ 4 header support
• Made for online gaming: WiFi 6E, Intel 2.5 Gb Ethernet and TUF LANGuard
• Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
• Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate
• Outshine RGB Aura Effect: Stylish edge and PCH lighting design, addressable RGB headers and RGB strip header support

• Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

• Intel® Z690

• 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 NonECC, Unbuffered Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II

• 1 x DisplayPort
• 1 x HDMI® port

• Intel® 12th Gen Processors 1 x PCIe 5.0 x16 slot
• Intel® Z690 Chipset
  • 1 x PCIe 3.0 x16 slot (supports x4 mode)
  • 1 x PCIe 3.0 x4 slot
  • 2 x PCIe 3.0 x1 slots

• Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
• Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 Intel® 12th Gen processors support PCIe 4.0 x4 mode
• Intel® Z690 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports

• 1 x Intel® 2.5Gb Ethernet
• TUF LANGuard

• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band
• Bluetooth v5.2 hardware ready

• Rear USB (Total 8 ports)
  • 1 x USB 3.2 Gen 2x2 port (1 x USB TypeC®)
  • 2 x USB 3.2 Gen 2 ports (2 x TypeA)
  • 5 x USB 3.2 Gen 1 ports (4 x TypeA + 1 x USB TypeC®)
• Front USB (Total 7 ports)
  • 1 x USB 3.2 Gen 2 connector (supports USB TypeC®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports

• Realtek 7.1 Surround Sound High Definition Audio CODEC
  • Supports: Jackdetection, Multistreaming, Front Panel Jackretasking
  • Supports up to 24Bit/192 kHz playback
• Audio Features
  • Audio Shielding
  • Rear optical S/PDIF out port
  • Premium audio capacitors
  • Dedicated audio PCB layers
  • Audio Cover

• 1 x USB 3.2 Gen 2x2 port (1 x USB TypeC®)
• 2 x USB 3.2 Gen 2 ports (2 x TypeA)
• 5 x USB 3.2 Gen 1 ports (4 x TypeA + 1 x USB TypeC®)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port

• Fan and Cooling related
  • 1 x 4pin CPU Fan header
  • 1 x 4pin CPU OPT Fan header
  • 1 x 4pin AIO Pump header
  • 4 x 4pin Chassis Fan headers
• Power related
  • 1 x 24pin Main Power connector
  • 1 x 8pin +12V Power connector
  • 1 x 4pin +12V Power connector
• Storage related
  • 4 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB
  • 1 x USB 3.2 Gen 2 connector (supports USB TypeC®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x AURA RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x 203 pin System Panel header with Chassis intrude function
  • 1 x Thunderbolt™ header

• ASUS TUF PROTECTION
  • DIGI+ VRM ( Digital power design with DrMOS)
  • Enhanced DRAM Overcurrent Protection
  • ESD Guards
  • TUF LANGuard
  • Overvoltage Protection
  • Safeslot
  • StainlessSteel Back I/O
• ASUS QDesign
  • M.2 QLatch
  • QDIMM
  • QLED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • QSlot
• ASUS Thermal Solution
  • M.2 heatsink
  • VRM heatsink design
• ASUS EZ DIY
  • CPU Socket lever protector
  • ProCool
  • Premounted I/O shield
  • SafeDIMM
• AURA Sync
  • AURA RGB header
  • Addressable Gen 2 headers

• ASUS Exclusive Software
• Armoury Crate
  • AURA Creator
  • AURA Sync
  • Fan Xpert 4
  • TwoWay AI Noise Cancelation
• AI Suite 3 Performance And Power Saving Utility
• TurboV EVO
• EPU
• DIGI+ VRM
• TUF GAMING CPUZ
• DTS Audio Processing
• Norton Antivirus software (Free Trial version)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode

• 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

• WOL by PME, PXE

• Cables 2 x SATA 6Gb/s cables
• Miscellaneous
  • 1 x ASUS Wi-Fi moving antenna
  • 2 x M.2 Rubber Packages
  • 1 x M.2 SSD screw package
  • 1 x TUF GAMING sticker
• Installation Media 1 x Support DVD
• Documentation
  • 1 x TUF Certification card
  • 1 x User guide

• Windows® 11 64bit, Windows® 10 64bit

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
