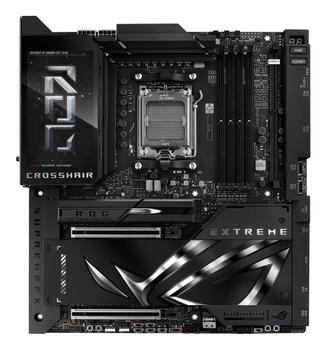

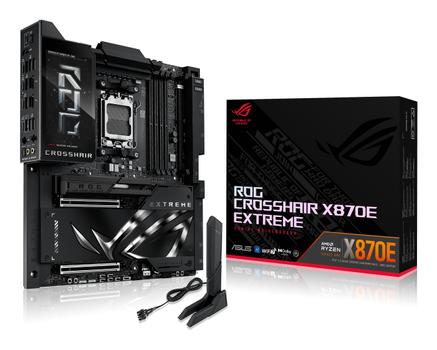

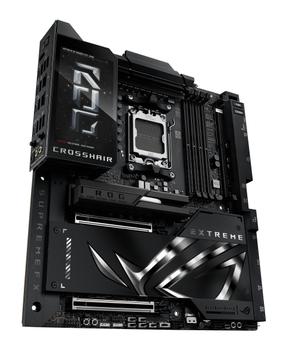

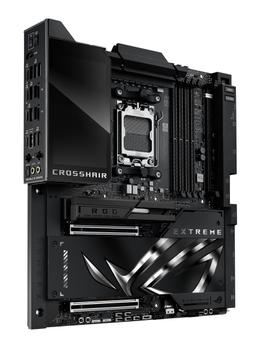

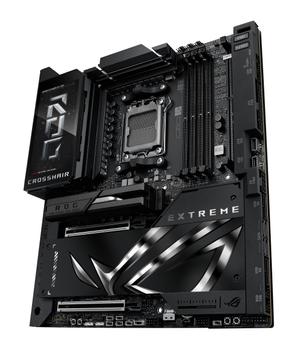

ASUS ROG CROSSHAIR X870E EXTREME (E-ATX, X870E, AM5, DDR5)

ROG Crosshair X870E Extreme

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

• AMD X870E

• 4 x DIMM slots, max. 256GB, DDR5
• Supports up to
  • 8200+MT/s(OC) with Ryzen™ 9000 Series Processors,
  • 9000+MT/s(OC) with Ryzen™ 8000 Series Processors,
  • 8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
  • ECC and Non-ECC, Un-buffered DIMM
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• ASUS Enhanced Memory Profile (AEMP)
• NitroPath DRAM Technology

• 1 x HDMITM port
• 2 x USB4® (40Gbps) ports support USB Type-C® display outputs

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8/x4/x4 modes)
• AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will be disabled)
• AMD Ryzen™ 8500 & 8300 Series Desktop Processors 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will be disabled)

• Supports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports
• AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• AMD Ryzen™ 8000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports)
• AMD X870E Chipset
  • DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately.
  • 4 x SATA 6Gb/s ports

• AMD RAIDXpert2 Technology
  • Ryzen™ 9000 Series Processors: RAID 0/1/5/10
  • Ryzen™ 8000 Series Processors: RAID 0/1
  • Ryzen™ 7000 Series Processors: RAID 0/1/10

• 1 x Realtek 5Gb Ethernet
• 1 x Marvell® AQtion 10Gb Ethernet
• ASUS LANGuard

• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
• Bluetooth® v5.4

• Rear USB (Total 12 ports)
  • 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
  • 10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C®)
• Front USB (Total 10 ports)
  • 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)
  • 1 x USB 10Gbps connector (supports USB Type-C®)
  • 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • USB Type-C® power delivery output: max. 5V/3A

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
  • Impedance sense for front and rear headphone outputs
  • Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  • High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
  • Supports up to 32-Bit/384 kHz playback on front panel
• Audio Features
  • SupremeFX Shielding Technology
  • ESS® ES9219 QUAD DAC
  • LED-illuminated audio jacks
  • Rear optical S/PDIF out port
  • Premium audio capacitors

• 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
• 10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C®)
• 1 x HDMITM port
• 1 x Wi-Fi Module
• 1 x Realtek 5Gb Ethernet port
• 1 x Marvell® AQtion 10Gb Ethernet port
• 2 x LED-illuminated audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

• Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 2 x 4-pin Chassis Fan headers
  • 2 x 4-pin Radiator Fan headers
  • 2 x W_PUMP+ headers
  • 1 x VRM Heatsink Fan header
• Power related
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V CPU Power connector
  • 1 x 8-pin PCIe Power connector
• Storage related
  • 3 x M.2 slots (Key M)
  • 1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
  • 1 x SlimSAS connector
  • 4 x SATA 6Gb/s ports
• USB
  • 1 x USB 20Gbps connector (supports USB Type-C®)
  • 1 x USB 10Gbps connector (supports USB Type-C®)
  • 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
  • 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
  • 2 x Addressable Gen 2 header
  • 1 x Alteration PCIe mode switch
  • 2 x BCLK button
  • 1 x BIOS Switch
  • 1 x FlexKey button
  • 1 x Front Panel Audio header (F_AUDIO)
  • 1 x LN2 Mode jumper
  • 12 x ProbeIt Measurement Points
  • 1 x ReTry button
  • 2 x RSVD switchs
  • 1 x RSVD header
  • 1 x Safe Boot button
  • 1 x Slow Mode switch
  • 1 x Start button
  • 1 x 10-1 pin System Panel header
  • 1 x Thermal Sensor header
  • 1 x Pause switch

• Extreme OC Kit
  • FlexKey button
  • LN2 Mode
  • ProbeIt
  • ReTry button
  • Safe boot button
  • Start button
  • Slow Mode
• Extreme Engine Digi+
  • 10K Black Metallic Capacitors
  • MicroFine Alloy Choke
• ASUS Q-Design
  • M.2 Q-Latch
  • M.2 Q-Release
  • M.2 Q-Slide
  • Q-Release Slim (with PCIe SafeSlot)
  • Q-Antenna
  • Q-Code
  • Q-Connector
  • Q-Dashboard
  • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • Q-Slot
  • Q-DIMM.2
• ASUS Thermal Solution
  • Fan bracket
  • M.2 heatsink backplate
  • M.2 heatsink
  • Metal backplate
  • VRM heatsink design
  • 3D VC M.2 Heatsink
• ASUS EZ DIY
  • Backplate
  • BIOS FlashBack™ button
  • Clear CMOS button
  • CPU Socket lever protector
  • ProCool II
  • Pre-mounted I/O shield
  • SafeSlot
  • SafeDIMM
• Aura Sync Addressable Gen 2 headers
• Dual BIOS
• Full Color 5" LCD Display
• Front Panel USB 20Gbps with Quick Charge 4+
• Support
  • Support: up to 60W fast charging and USB Wattage Watcher
  • Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
  • Compatible with PD3.0 and PPS

• ROG Exclusive Software
  • ROG CPU-Z
  • Dolby Atmos
  • Internet Security (1-year full version)
• ASUS Exclusive Software
  • Armoury Crate
  • AIDA64 Extreme (1 year full version)
  • Aura Creator
  • Aura Sync
  • Fan Xpert 4 (with AI Cooling II)
  • GameFirst
  • HWiNFO
  • Power Saving
  • LCD Display
  • ASUS AI Advisor
  • ASUS DriverHub
  • Turbo Vcore
  • ASUS GlideX
  • USB Wattage Watcher
  • WinRAR (40 Days Free Trial)
  • Adobe Creative Cloud (Free Trial)
• UEFI BIOS
  • AI Overclocking Guide
  • ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode
  • ASUS MyHotkey
  • FlexKey

• 2 x 256 Mb Flash ROM, UEFI AMI BIOS

• WOL by PME

• Cables
  • 1 x 1-to-3 ARGB splitter cable
  • 1 x 1-to-2 ARGB splitter cable
  • 2 x 1-to-4 fan splitter cable
  • 2 x ROG weave SATA 6G cable packages
  • 1 x 3-in-1 Thermistor cables pack
• ROG Q-DIMM.2 with Heatsink
  • 1 x ROG DIMM.2 with heatsink
  • 1 x M.2 pad package for ROG Q-DIMM.2
  • 2 x Thermal pad for ROG Q-DIMM.2
• Additional Cooling Kit
  • 2 x Thermal pad for M.2 22110
  • 1 x DDR5 Fan holder
  • 1 x ROG Fan Kit
• Miscellaneous
  • 1 x ASUS WiFi Q-Antenna
  • 1 x Q-connector
  • 1 x ROG logo plate sticker
  • 1 x ROG screwdriver
  • 1 x ROG stickers
  • 1 x ROG VIP card
  • 1 x M.2 Q-Slide package
  • 5 x M.2 backplate rubber packages
  • 1 x ROG Bottle Opener
• Installation Media 1 x USB drive with utilities and drivers
• Documentation 1 x Quick start guide

• Windows® 11

• E-ATX Form Factor
• 12 inch x 10.9 inch (30.5 cm x 27.7 cm)
