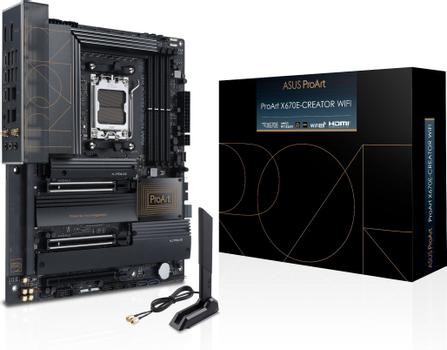

ASUS ProArt X670E-CREATOR WIFI (ATX, X670E, AM5)

ProArt X670E-CREATOR WIFI

• Gen 5 slots for graphics cards and storage
• DDR5 Support
• Dual USB4® ports for up to 40Gbps transfer speed
• 10Gb & 2.5 Gb Ethernet, WiFi 6E
• 16(70A)+2(70A)+2 power stages with enlarged VRM heatsinks
• AI Overclocking, Dynamic OC Switcher and Core Flex
• AI Cooling II
• ProArt Creator Hub

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

• AMD X670

• 4 x DIMM, Max. 192GB, DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• OptiMem II

• 1 x HDMI® port
• 2 x USB4® ports support USB Type-C® display outputs

• AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)
• AMD X670 Chipset 1 x PCIe 4.0 x16 slot (supports x2 mode)

• Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
• AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• AMD X670 Chipset
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports

• 1 x Marvell® AQtion 10Gb Ethernet
• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band
• Bluetooth® v5.2

• Rear USB (Total 11 ports)
  • 2 x USB4® with Intel® JHL8540 USB4® controller ports (2 x USB Type-C®)
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 7 x USB 3.2 Gen 2 ports (7 x Type-A)
  • 1 x USB 2.0 port (1 x Type-A)
• Front USB (Total 9 ports)
  • 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+)
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 3 x USB 2.0 headers support 6 additional USB 2.0 ports

• Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
  • Impedance sense for front and rear headphone outputs
  • Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  • Supports up to 32-Bit/192 kHz playback
• Audio Features
  • Power pre-regulator reduces power input noise to ensure consistent performance
  • Premium audio capacitors
  • Dedicated audio PCB layers
  • Audio cover
  • Unique de-pop circuit

• 2 x USB4® with Intel® JHL8540 USB4® controller ports (2 x USB Type-C®)
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 7 x USB 3.2 Gen 2 ports (7 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)
• 1 x DisplayPort (Input only)
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Marvell® AQtion 10Gb Ethernet
• 1 x Intel® 2.5Gb Ethernet
• 3 x Audio jacks
• 1 x BIOS FlashBack™ button

• Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 5 x 4-pin Chassis Fan headers
• Power related
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V Power connectors
  • 1 x 6-pin PCIe Power connector
• Storage related
  • 4 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB
  • 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 3 x USB 2.0 headers support 6 additional USB 2.0 ports
• Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x CPU Over Voltage jumper
  • 1 x Front Panel Audio header (AAFP)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thermal Sensor header

• ASUS 5X PROTECTION III
  • DIGI+ VRM (Digital power design)
  • Enhanced DRAM Overcurrent Protection
  • ESD Guards
  • LANGuard
  • Overvoltage Protection
  • Safeslot
  • Stainless-Steel Back I/O
• ASUS Q-Design
  • M.2 Q-Latch
  • PCIe Slot Q-Release
  • Q-Connector
  • Q-DIMM
  • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • Q-Slot
• ASUS Thermal Solution
  • M.2 heatsink backplate
  • M.2 heatsinks
  • VRM heatsink design
• ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
  • ProCool
  • Pre-mounted I/O shield
  • SafeSlot
  • SafeDIMM
• AURA Sync
  • Aura RGB header
  • Addressable Gen 2 headers
• Bespoke Motherboard Design & Business Focused Features
  • 24/7 Reliability
  • Overcurrent Protection
• Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support
  • Support: up to 60W charging
  • Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
  • Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS

• ASUS Exclusive Software
  • Armoury Crate
  • Aura Creator
  • Aura Sync
  • Fan Xpert 4 with AI Cooling II
  • Power Saving
  • Two-Way AI Noise Cancellation
  • AI Suite 3
  • TPU
  • DIGI+ VRM
  • Turbo app
  • ASUS CPU-Z
  • IT Management software supported
  • ASUS Control Center Express(ACCE)
  • CreationFirst
  • MyAsus
  • Norton Anti-virus software (Free Trial version)
  • ProArt Creator Hub
  • WinRAR
• UEFI BIOS
  • ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode
  • FlexKey

• 256 Mb Flash ROM, UEFI AMI BIOS

• WOL by PME, PXE

• Cables
  • 1 x DisplayPort cable
  • 4 x SATA 6Gb/s cables
• Miscellaneous
  • 1 x ASUS Wi-Fi moving antennas
  • 1 x Q-connector
  • 1 x M.2 Q-Latch package for M.2 backplate
  • 2 x Rubber Packages for M.2
  • 1 x Rubber Package for M.2 backplate
  • 1 x Screw packages for M.2 SSD
  • 1 x ProArt ruler
• Documentation
  • 1 x ACC Express Activation Key Card
  • 1 x User guide

• Windows® 11 64-bit, Windows® 10 64-bit

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
