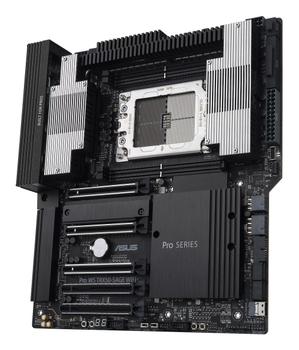

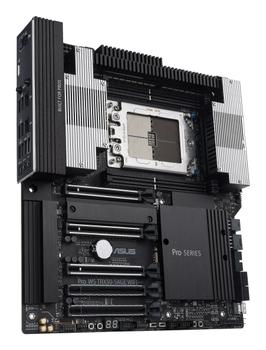

ASUS PRO WS TRX50-SAGE WIFI 7 (CEB, TRX50, sTR5)

Pro WS TRX50-SAGE WIFI

• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors and AMD Ryzen Threadripper 7000 Series Processors.
• CPU and memory overclocking: Support for up to 1TB ECC R-DIMM DDR5 memory modules (1DPC)
• Robust power and thermal design: 36 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks, and M.2 thermal pad.
• Ultrafast connectivity: three PCIe® 5.0 x16 slots, 10 Gb & 2.5 Gb LAN ports, three M.2 slots, front and rear USB 20Gbps Type-C® and SlimSAS NVMe support.
• Server-grade IPMI remote management: hardware and software support for ASUS IPMI expansion cards, plus ASUS Control Center Express software for real-time monitoring and management
• Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation

• AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors

• AMD TRX50 Chipset

• 4 x DIMM slots, DDR5, ECC Registered Memory
• 4 Channel Memory Architecture

• AMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors
• 2 x PCIe 5.0 x16 slots
• 1 x PCIe 5.0 x16 slot(x8 mode)
• 1 x PCIe 4.0 x16 slot
• 1 x PCIe 4.0 x16 slot(x4 mode)

• Total supports 3 x M.2 slots, 4 x SATA 6Gb/s ports AMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)AMD TRX50 Chipset
• M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• 1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device

• 1 x Marvell® AQtion 10Gb Ethernet
• 1 x Intel® I226-LM 2.5Gb Ethernet

• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Support Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth® v5.4

• Rear USB (Total 9 ports)
  • 1 x USB 20Gbps port (1 x USB Type-C®)
  • 6 x USB 10Gbps ports (6 x Type-A )
  • 2 x USB 2.0 ports (2 x Type-A )
• Front USB (Total 7 ports)
  • 1 x USB 20Gbpsconnector (supports USB Type-C® with up to 27W PD/QC4+)
  • 1 x USB 5Gbps header supports 2 additional USB 5G ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports

• Realtek ALC1220P Surround Sound High Definition Audio CODEC
  • Impedance sense for front and rear headphone outputs
  • Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  • Supports up to 32-Bit/192 kHz playback

• 1 x USB 20Gbps port (1 x USB Type-C®)
• 6 x USB 10Gbps ports (6 x Type-A)
• 2 x USB 2.0 port (2 x Type-A)
• 1 x Wi-Fi Module
• 1 x Marvell® AQtion 10Gb Ethernet port
• 1 x Intel® 2.5Gb Ethernet port
• 2 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

• Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x W_PUMP+ header
  • 4 x 4-pin Chassis Fan headers
  • 2 x 4-pin VRM Fan header (with VRM FAN onboard)
• Power related
  • 2 x 24-pin Main Power connectors
  • 2 x 8-pin +12V Power connectors
  • 2 x 8-pin PCIe to CPU power connectors
  • 1 x 6-pin PCIe Power connector
  • 1 x 8-pin PCIe Power connector
• Storage related
  • 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports
  • 1 x SlimSAS port
• USB
  • 1 x USB 20Gbps connector supports USB Type-C®
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
  • 1 x BMC header1 x COM Port header
  • 1 x USB4 header1 x FlexKey button
  • 1 x Front panel audio header (F_AUDIO)
  • 1 x Start button
  • 1 x Safe boot button
  • 1 x ReTry button1 x LN2 mode jumper
  • 1 x Slow mode switch
  • 1 x SPI TPM header (14-1pin)
  • 1 x 10-1 pin system panel header
  • 1 x Chassis intrusion header
  • 1 x Thermal Sensor header

• ASUS Q-Design
  • Q-Code
  • M.2 Q-Latch
  • Q-Connector
  • Q-DIMM
  • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • Q-Slot
• ASUS Thermal Solution
  • M.2 heatsink and onboard thermal pads
  • VRM heatsink design with active fans
• ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
  • Clear CMOS button
  • ProCool II
  • Pre-mounted I/O shield
  • SafeSlot
  • SafeDIMMBespoke
• Motherboard Design & Business Focused Features
  • 24/7 Reliability
  • Overcurrent Protection

• ASUS Exclusive Software
  • Armoury CrateFan Xpert 4
  • ASUS CPU-Z
  • IT Management software supported
  • ASUS Control Center Express(ACCE)
  • Adobe Creative Cloud (Free Trial)
  • Norton 360 Deluxe (60 Days Free Trial)
  • WinRAR (40 Days Free Trial)
• UEFI BIOS
  • ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUSTeK. EzFlash UtilityFlexKey

• 256 Mb Flash ROM, UEFI AMI BIOS

• WOL by PME, PXE (UEFI mode)

• Cables
  • 2 x SATA 6Gb/s cables
  • 1 x CPU 8-pin to PCIe 8-pin adapter cable package
  • 1 x Thermistor cable pack
• Miscellaneous
  • 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
  • 1 x M.2 Q-Latch package(2 in 1)
  • 2 x M.2 Rubber Packages
  • 1 x Q-connectorDocumentation
  • 1 x ACC Express Activation Key Card
  • 1 x QSG

• Windows® 11 64-bit

• CEB Form Factor
• 12 inch x 11 inch (30.5 cm x 28.0 cm)
