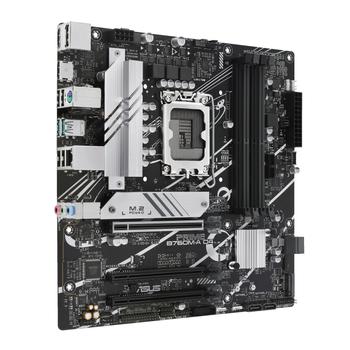

ASUS PRIME B760M-A D4-CSM LGA1700 4DDR5 microATX 4xSATA 2xDP 1.4 HDMI 2.1 MB

PRIME B760M-A D4-CSM

• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
• Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
• Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
• ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection

• Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

• Intel® B760 Chipset

• 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II

• 1 x DisplayPort
• 2 x HDMI® ports

• Intel® CoreTM Processors (14th & 13th & 12th Gen)
  • 1 x PCIe 4.0 x16 slot
• Intel® B760 Chipset
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 1 x PCIe 4.0 x16 slot (supports x1 mode)

• Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports
• Intel® CoreTM Processors (14th & 13th & 12th Gen)
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• Intel® B760 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports

• 1 x Realtek 2.5Gb Ethernet

• Rear USB (Total 6 ports)
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A )
  • 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 10 ports)
  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • 1 x USB 2.0 header supports 1 additional USB 2.0 port

• Realtek 7.1 Surround Sound High Definition Audio CODEC
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Features
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers

• 2 x USB 3.2 Gen 2 ports (2 x Type-A )
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 2 x HDMI® ports
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

• Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 2 x 4-pin Chassis Fan headers
• Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
• Storage related
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB
  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • 1 x USB 2.0 header supports 1 additional USB 2.0 port
• Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x LPT header
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-3 pin System Panel header with Chassis intrude function

• ASUS 5X PROTECTION III
  • DIGI+ VRM
  • LANGuard
  • Overvoltage Protection
  • SafeSlot Core+
  • Stainless-Steel Back I/O
• ASUS Q-Design
  • Q-DIMM
  • Q-LED Core
  • Q-Slot
• ASUS Thermal Solution
  • M.2 heatsink
  • VRM heatsink design
• ASUS EZ DIY
  • ProCool
• Aura Sync
  • Aura RGB header
  • Addressable Gen 2 headers

• ASUS Exclusive Software
  • Armoury Crate
  • Aura Creator
  • Aura Sync
  • Fan Xpert 2+
  • Power Saving
  • AI Suite 3
  • Digi+ VRM
  • PC Cleaner
  • ASUS CPU-Z
  • Norton Deluxe (60 Days Free Trial)
  • WinRAR
• UEFI BIOS
  • ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode

• 128 Mb Flash ROM, UEFI AMI BIOS

• WOL by PME, PXE

• Cables 2 x SATA 6Gb/s cables
• Miscellaneous
  • 1 x I/O Shield
  • 1 x M.2 Rubber Package
  • 1 x Screw package for M.2 SSD
• Documentation
  • 1 x ACC Express Activation Key Card
  • 1 x User guide

• Windows® 11, Windows® 10 64-bit

• mATX Form Factor
• 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
