ASUS PRIME B660M-K D4 LGA1700 DDR4 mATX MB

Forsiden ASUS PRIME B660M-K D4 LGA1700 DDR4 mATX MB
ASUS PRIME B660M-K D4 LGA1700 DDR4 mATX MB (90MB1950-M1EAY0)

ASUS PRIME B660M-K D4 LGA1700 DDR4 mATX MB

Varenr.:
90MB1950-M1EAY0
EAN:
4711081511830
  • Prosessorsokkel LGA 1700 (kontakt V)
  • Chipset Intel B660
  • M.2 Slot 2
  • Minnespor 2 x DIMM, DDR4
  • Maksimal RAM-frekvens 5.333GHz
  • Støttet maksimalt minne 64GB
  • Formfaktor Micro ATX
1 462,-
1 169,60 ekskl. mva
Vårt lager på Furuset (PUP) Ikke på lager Leverandørlager (1-3 arbeidsdager) Antall 3
Fyll inn postnummer og klikk knappen for å vise frakt priser
Beskrivelse

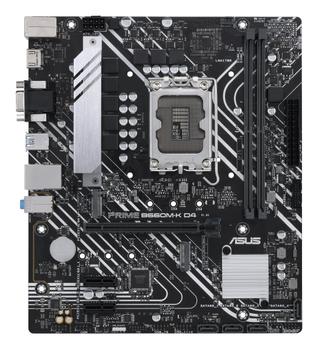

PRIME B660M-K D4

Features:
  • Intel® LGA 1700 socket: Ready for 12th gen Intel® processors
  • Enhanced power solution: 8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
  • Comprehensive cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert
  • Ultrafast connectivity: PCIe® 4.0, two M.2 slots and front USB 3.2 Gen 1
Specifications:

CPU
  • Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
hipset
  • B660
Memory
  • 2x DIMM, Max. 64GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
Graphics
  • 1 x D-Sub port
  • 1 x HDMI® port
Expansion Slots
  • Intel® 13th & 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot
  • Intel® B660 Chipset 2 x PCIe 3.0 x1 slots
Storage
  • Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel® 13th & 12th Gen Processors
    • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
  • Intel® B660 Chipset
    • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
    • 4 x SATA 6Gb/s ports
Ethernet
  • 1 x Realtek 1Gb Ethernet
  • ASUS LANGuard
USB
  • Rear USB:Total 6 ports
    • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
    • 2 x USB 2.0 ports (2 x Type-A)
  • Front USB:Total 6 ports
    • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
    • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    • Supports up to 24-Bit/192 kHz playback
  • Audio Features
    • Audio Shielding
    • Premium audio capacitors
    • Dedicated audio PCB layers
Back Panel I/O Ports
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x D-Sub port
  • 1 x HDMI® port
  • 1 x Realtek 1Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
  • Fan and Cooling related
    • 1 x 4-pin CPU Fan header
    • 1 x 4-pin Chassis Fan header
  • Power related
    • 1 x 24-pin Main Power connector
    • 1 x 8-pin +12V Power connector
  • Storage related
    • 2 x M.2 slots (Key M)
    • 4 x SATA 6Gb/s ports
  • USB
    • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • Miscellaneous
    • 1 x RGB header
    • 1 x Clear CMOS header
    • 1 x COM Port header
    • 1 x Front Panel Audio header (AAFP)
    • 1 x S/PDIF Out header
    • 1 x Speaker header
    • 1 x SPI TPM header (14-1pin)
    • 1 x 10-1 pin System Panel header
Special Features
  • ASUS 5X PROTECTION III
    • DIGI+ VRM
    • LANGuard
    • Overvoltage Protection
    • SafeSlot Core
    • Stainless-Steel Back I/O
  • ASUS Q-Design
    • Q-DIMM
    • Q-Slot
  • ASUS EZ DIY
    • ProCool
  • ASUS Thermal Solution
    • VRM heatsink design
  • ASUS Lighting Control
    • RGB header
Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • AI Suite 3 Performance And Power Saving Utility
  • TurboV EVO
  • EPU
  • DIGI+ VRM
  • Fan Xpert
  • ASUS CPU-Z
  • Norton Anti-virus software (Free Trial version)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
    • ASUS CrashFree BIOS 3
    • ASUS EZ Flash 3
    • ASUS UEFI BIOS EZ Mode
BIOS
  • 128 Mb Flash ROM, UEFI AMI BIOS
Manageability
  • WOL by PME, PXE
Accessories
  • Cables 2x SATA 6Gb/s cables
  • Miscellaneous
    • 1 x I/O Shield
    • 2 x M.2 anchors
  • Installation Media 1 x Support DVD
  • Documentation 1 x User manual
Operating System
  • Windows® 11, Windows® 10 64-bit
Form Factor
  • microATX 24.4cm x 21.1cm
