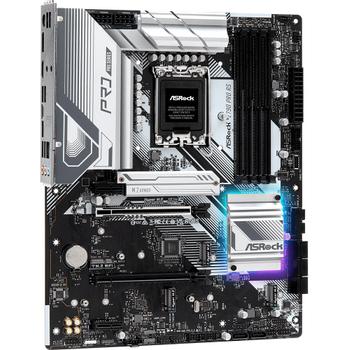

ASROCK Z790 Pro RS

Forsiden ASROCK Z790 Pro RS
ASROCK Z790 Pro RS (90-MXBK40-A0UAYZ)

ASROCK Z790 Pro RS

Varenr.:
90-MXBK40-A0UAYZ
EAN:
4710483940767
  • Prosessorsokkel LGA 1700 (kontakt V)
  • Chipset Intel Z790
  • M.2 Slot 4
  • Minnespor 4 x DIMM, DDR5
  • Maksimal RAM-frekvens 6.8GHz
  • Støttet maksimalt minne 128GB
  • Formfaktor ATX
2 846,-
2 276,80 ekskl. mva
Vårt lager på Furuset (PUP) Ikke på lager Leverandørlager (1-3 arbeidsdager) Forventet på lager 09.12.2022
Fyll inn postnummer og klikk knappen for å vise frakt priser
Beskrivelse

Z790 Pro RS

Features:
  • Supports 13th Gen & 12th Gen Intel® Core™ Processors
  • 14+1+1 Phase Power Design, Dr.MOS for VCore+GT
  • 4 x DDR5 DIMMs, supports up to 6800+(OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key-E for WiFi
  • Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
  • 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3
  • 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 6 USB 3.2 Gen1 (2 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front)
  • Realtek 2.5G LAN
Specifications:

Unique Feature
  • Superb Productivity
    • PCIe Gen5 (Graphics)
    • Dual Channel DDR5
  • RockSolid Durability
    • 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor
    • Flexible Integrated I/O Shield
  • Ultrafast Connectivity
    • 2.5G LAN
  • EZ Update
    • ASRock Auto Driver Installer
  • EZ Troubleshooter
    • ASRock Post Status Checker
CPU
  • Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
  • Supports Intel® Hybrid Technology
  • Supports Intel® Turbo Boost Max 3.0 Technology
  • Supports Intel® Thermal Velocity Boost (TVB)
  • Supports Intel® Adaptive Boost Technology (ABT)
Chipset
  • Intel® Z790
Memory
  • Dual Channel DDR5 Memory Technology
  • 4 x DDR5 DIMM Slots
  • Supports DDR5 nonECC, unbuffered memory up to 6800+(OC)
  • Max. capacity of system memory: 128GB
  • Supports Intel® Extreme Memory Profile (XMP) 3.0
BIOS
  • 128Mb AMI UEFI Legal BIOS with GUI support
Graphics
  • Intel® Xe Graphics Architecture (Gen 12)
  • 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
  • 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
  • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Audio
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Nahimic Audio
LAN
  • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  • Dragon RTL8125BG
  • Supports Dragon 2.5G LAN Software
    • Smart Auto Adjust Bandwidth Control
    • Visual User Friendly UI
    • Visual Network Usage Statistics
    • Optimized Default Setting for Game, Browser, and Streaming Modes
    • User Customized Priority Control
Slots
  • CPU:
    • 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode
  • Chipset:
    • 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode
    • 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)
    • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
  • Supports AMD CrossFire™
Storage
  • CPU:
    • 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
  • Chipset:
    • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
    • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
    • 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
    • 8 x SATA3 6.0 Gb/s Connectors
RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB
  • 1 x USB 3.2 Gen2x2 TypeC (Front)
  • 1 x USB 3.2 Gen2 TypeC (Rear)
  • 1 x USB 3.2 Gen2 TypeA (Rear)
  • 6 x USB 3.2 Gen1 (2 Rear, 4 Front)
  • 8 x USB 2.0 (4 Rear, 4 Front)
Connector
  • 1 x eDP Signal Connector
  • 1 x SPI TPM Header
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header
  • 3 x Addressable LED Headers
  • 1 x CPU Fan Connector (4pin)
  • 1 x CPU/Water Pump Fan Connector (4pin) (Smart Fan Speed Control)
  • 5 x Chassis/Water Pump Fan Connectors (4pin) (Smart Fan Speed Control)
  • 1 x 24 pin ATX Power Connector
  • 2 x 8 pin 12V Power Connectors (HiDensity Power Connector)
  • 1 x Front Panel Audio Connector
  • 1 x Thunderbolt™ AIC Connector (5pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Rear Panel I/O
  • 2 x Antenna Mounting Points
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 1 x USB 3.2 Gen2 TypeA Port (10 Gb/s)
  • 1 x USB 3.2 Gen2 TypeC Port (10 Gb/s)
  • 2 x USB 3.2 Gen1 Ports
  • 4 x USB 2.0 Ports
  • 1 x RJ45 LAN Port
  • HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
  • Software
    • ASRock Motherboard Utility (ATuning)
    • ASRock Dragon 2.5G LAN Software
    • ASRock Polychrome SYNC
  • UEFI
    • ASRock EZ Mode
    • ASRock Full HD UEFI
    • ASRock My Favorites in UEFI
    • ASRock Auto Driver Installer
    • ASRock Instant Flash
    • ASRock Easy RAID Installer
Accessories
  • 1 x User Manual
  • 2 x SATA Data Cables
  • 5 x Screws for M.2 Sockets
  • 1 x Standoff for M.2 Socket
Form Factor
  • ATX Form Factor: 12.0in x 9.6in, 30.5 cm x 24.4 cm
  • 2oz Copper PCB
OS
  • Microsoft® Windows® 10 64bit / 11 64bit
Certifications
  • FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply is required)
