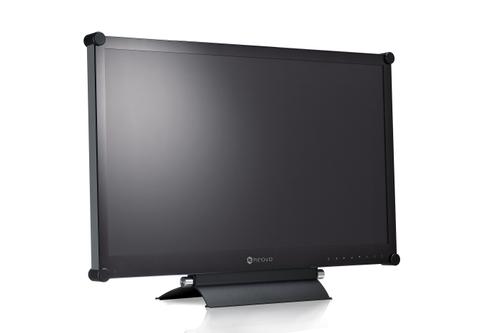

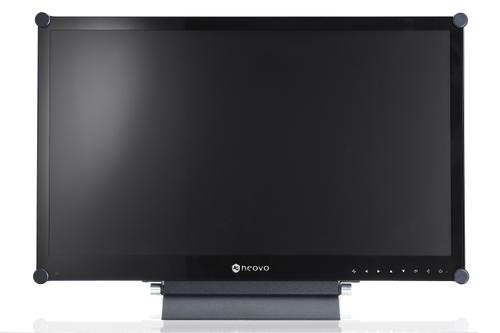

HX-24G Tailored to the applications of uncompressed and high-definition video transmission, the HX-24G features SDI input and output that allow to receive and transmit the megapixel image directly from 3G/SD/HD-SDI devices. The HX-24G fulfills the critical need of broadcasting and studio production in the light of ultra-low latency and signal interruption over long-distance transmission. Its NeoV™ Optical Glass and metal casing offer the state-of-art protection that empowers HX-24G to survive the rigours of production in studios and surveillance environment. Real-time and uncompressed, HX-24G is the perfect choice for broadcast, security and public environments. Uninterrupted Transmission The HX-24G has been designed for broadcasting as well as surveillance applications, which supports multiple SDI video signals up to 3G-SDI to ensures all video formats can be broadcast uninterruptedly. Its high-quality SDI input and loop through SDI output makes it easy to connect other gear without the need for a splitter. Unbeatable Image Clarity Built with cutting-edge super-resolution technology, the HX-24G can upscale images at a higher and more detailed resolution for better clarity. The AG Neovo specialized image settings enhance colour, brightness, sharpness and contrast ratio, allowing the HX-24G to improve the light, shadows and colour balance of videos. Industry-leading Reliability The HX-24G is specially designed to transcend the challenge of enduring 24/7 operations. AG Neovo’s Anti-Burn-in™ technology also prevents image ghosting while performing nonstop mission-critical operations. Its metal casing and NeoV™ Optical Glass not only protect the HX-24G from damage but also keep maintenance easy. Specifications: Panel Panel Type: LED-Backlit TFT LCD (TN Technology) Panel Size: 23.6" Max. Resolution: FHD 1920 x 1080 Pixel Pitch: 0.272 mm Brightness: 300 cd/m² Contrast Ratio: 20,000,000:1 (DCR) Viewing Angle (H/V): 170°/160° Display Colour: 16.7M Response Time: 3 ms Surface Treatment: Anti-Glare Treatment (Haze 25%),2H Hard Coating Frequency Frequency (H): 24 kHz-83 kHz Frequency (V): 50 Hz-75 Hz Signal Input SDI: BNC x 1 DisplayPort: x 1 HDMI: 1.4 x 1 DVI: 24-Pin DVI-D VGA: 15-Pin D-Sub x 1 Composite: BNC x 1 Signal Output SDI: BNC x 1 Composite: BNC x 1 External Control RS232 In: 2.5 mm Phone Jack Other Connectivity USB: 2.0 x 1 (Service Port) Audio Audio In: Stereo Audio Jack (3.5mm), Stereo Audio Jack (RCA) Internal Speakers: 2W x 2 Power Supply: External Power Requirements: DC 12V, 2.75A On Mode: 25W (On) Stand-by Mode: < 0.5W Off Mode: < 0.5W Thickness: 3.0 mm (0.12") Reflection Rate: < 1% Transmission Rate: > 97% Hardness: > 9H Operating Conditions Temperature: 0°C-40°C (32°F-104°F) Humidity: 10%-90% (non-condensing) Storage Conditions Temperature: -20°C-60°C (-4°F-140°F) Humidity: 5%-95% (non-condensing) Mounting VESA FPMPMI: Yes (100 x 100 mm & 75 x 75 mm) Stand Tilt: 0° to 18° Security Kensington Security Slot: Yes Dimensions Product with Base (W x H x D): 562.4 x 392.8 x 196.0 mm (22.1" x 15.4" x 7.7") Product w/o Base (W x H x D): 562.4 x 352.6 x 56.2 mm (22.1" x 13.9" x 2.2") Packaging (W x H x D): 672.0 x 517.0 x 249.0 mm (26.5" x 20.4" x9.8") Weight Product w/o Base: 7.3 kg(16.1 lb) Product with Base: 8.1kg(17.9lb) Packaging: 11.2kg(24.7lb) Regulation Approval Certifications & Compliance: CB, CE, FCC, RoHS, WEEE, REACH Accessories Supplied: Power Adaptor, Power Cord, VGA Cable, Audio Cable, Quick Start Guide, Warranty Card Optional Accessories Ceiling Mount (Landscape only): CMP-01+WMK-03 Wall Mount (Landscape only): WMA-01, WMK-01, WMK-03, PMK-01 Desk Mount (Landscape only): DMC-01, DMC-02D, DMS-01D, DMS-01Q, ES-02
